RG59 ST BC 95% CCA PVC Factory Price High Quality Siamese Cable Camera Cable CCTV Cable for Surveillance

Brand Name : Zion communication OR OEM

Model Number : RG59 Coaxial Cable

Certification : ISO, UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 305M, 1000FT, Wooden Reel, Carton

Conductor : 22 AWG BC

Insulation : Solid PE

Shield : Bare Copper braid wire 95% coverage

Jacket : PVC CM

Color : Black, White

Package : 305M, 1000FT, Wooden Reel, Carton

Contact Now

RG59 ST BC 95% CCA PVC
75 Ohm CCTV coaxial Cable
NO.7100172
Construction Parameters:
Inner Conductor 0.025"/0.64mm/22 AWG BC
Dielectric 0.148"/3.7±0.05mm Solid PE
Shield 0.12mm/34AWG Copper Clad Aluminum(95%)
Jacket 0.230"/6.00±0.1mm PVC
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance 54 Ohms/KM at 20℃
Capacitance 67±2 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 0.230"/6.00±0.1mm PVC

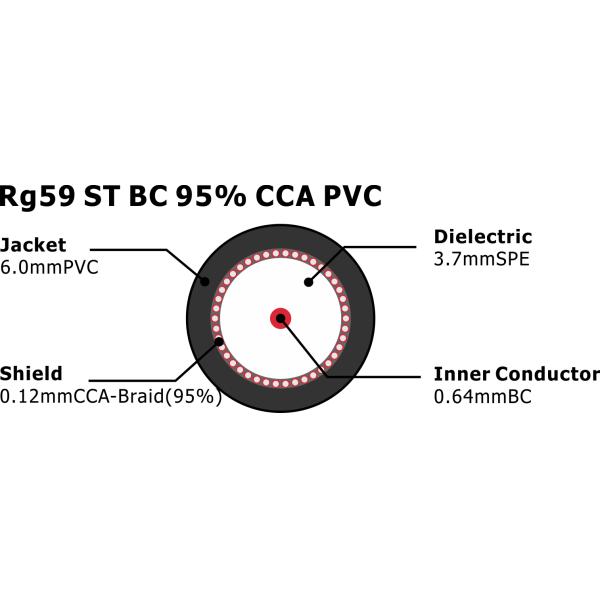

Cross Section
RG59 ST BC 95% CCA PVC Factory Price High Quality Siamese Cable Camera Cable CCTV Cable for Surveillance
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.87 2.70
50 2.90 9.00
100 4.15 12.87
200 5.98 18.54
550 10.32 31.98
750 12.20 37.81
865 13.27 41.15
1000 14.40 44.65
Order Informations:
Marking HELLOSIGNAL RG59 ST BC 95% CCA PVC
CCTV COAXIAL CABLE 7100172 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL®OR OEM
Similar Type:
Cond.Type
&Nom.D.C.R		 Dielectric Shielding&
%Coverage		 Jacket Type Nom. Capacitance Nom.Imp.Ω
RG59 B/U BC
95% BC
PVC
NO.7100167		 23AWG/0.58mm BC
65.26 Ω/km		 Soild
PE		 BC-Braid 95% PVC 67±2 pF/m 75±3Ω
RG59 B/U BC
95% CCA
PVC
NO.7100168		 23AWG/0.58mm BC
65.26 Ω/km		 Soild
PE		 CCA-Braid 95% PVC 67±2 pF/m 75±3Ω
RG59 B/U BC
95% BC
PE
NO.7100169		 23AWG/0.58mm BC
65.26 Ω/km		 Soild
PE		 BC-Braid 95% PE 67±2 pF/m 75±3Ω
RG59 B/U BC
95% CCA
PE
NO.7100170		 23AWG/0.58mm BC
65.26 Ω/km		 Soild
PE		 CCA-Braid 95% PE 52±2 pF/m 75±3Ω
RG59 Micro
95% CCA
PVC
NO.7100171		 7×0.18mm (STR)BC
20.74 Ω/km		 Soild
PE		 CCA-Braid 95% PVC 67±2 pF/m 75±3Ω
RG59 ST BC
85% CCA
PVC
NO.7100173		 22AWG/0.64mm
(SOL)BC
54 Ω/km		 Soild
PE		 CCA-Braid 85% PVC 67±2 pF/m 75±3Ω
RG59 UK BC
47% AL
PVC
NO.7100174		 22AWG/0.70mm
(SOL)BC
45 Ω/km		 Foamed
PE		 Al-Braid 47% PVC 52±1 pF/m 75±3Ω
