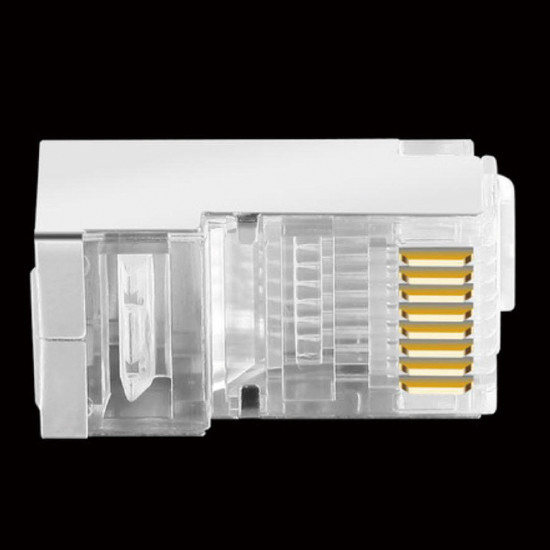

ZC-MP88SR 8P/8C CAT5E Modular Plug Shielded 8 Position Crystal Head

Brand Name : Zion communication

Model Number : ZC-MP88SR

Current Rating,maximum : 0.75 A

Insulation Resistance,minimum : 500 mOhm

Safety Voltage Rating : 150 Vac

Cable Type : Round,shielded

Interface : RJ45

Positions/loaded Contacts : 8P/8C

Contact Now

ZC-MP88SR(7246205) 8P/8C, CAT5E,Shielded, Round, 4.8-5.6 Mm Cable Jack OD, 8-Position, Crystal Head

Modular Plug , 8P/8C, CAT5E,Shielded,
Round, 4.8-5.6 mm cable jack OD, 8-position, crystal head,100/bag

Product composition View

ZC-MP88SR 8P/8C CAT5E Modular Plug Shielded 8 Position Crystal Head

Dimensional Structure

ZC-MP88SR 8P/8C CAT5E Modular Plug Shielded 8 Position Crystal Head

Electrical Specifications

ANSI/TIA Category 5
Current Rating,maximum 0.75 A
Insulation Resistance,minimum 500 mOhm
Safety Voltage Rating 150 Vac
Pass fluke test Compliant

General Specifications

Cable Type Round,shielded
Interface RJ45
Application
Operating Temperature -40℃ to +85℃
Relative Humidity Up to 93%, non-condensing
Package Quantity 100
Packaging Type Bag | Box | Carton
Positions/loaded Contacts 8P/8C

Mechanical Specifications

Conductor Gauge Solid/Stranded 26-23 AWG
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 50μ OR 30μ | 6μ
Material Type PC = Polycarbonate
Plug Insertion Life,minimum 750 times
Plug Shield Base Material Copper Alloy
Plug Shield Plating Material Nickel

Regulatory Compliance/Certifications

RoHS 2011/65/EU Compliant
